Product descriptions from the supplier
Video Description
Key attributes
| packaging material | plastic | packaging type | Stand-up Pouch, Film |
| application | Food, Chemical, Commodity, Machinery & Hardware | driven type | Electric |
| Filling Material | Granule, Solid | warranty | 1.5 years |
| Voltage | 220V, 380V, 110V | function | Wrapping, Sealing, Labeling |
| automatic grade | Automatic | after-sales service provided | Video technical support, Field installation, commissioning |
| Weight (KG) | 740 | place of origin | China |
| brand name | BENSON | key selling points | Easy to Operate, Long Service Life, High Safety Level |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | PLC, motor | Weigher heads | 10 heads |
| Max single dump cap (g) | 10-1000g | Volume | 1.5/2.5L |
| Film width | L:40-300mm*W:60-220mm | Packing speed | 60bags/min |
| Film pulling driven system | servo motor | Horizontal sealing driven system | cylinder |
| Bag type | pillow bag, gusset bag, seal type bag, triangle bag | key selling points | Automatic |

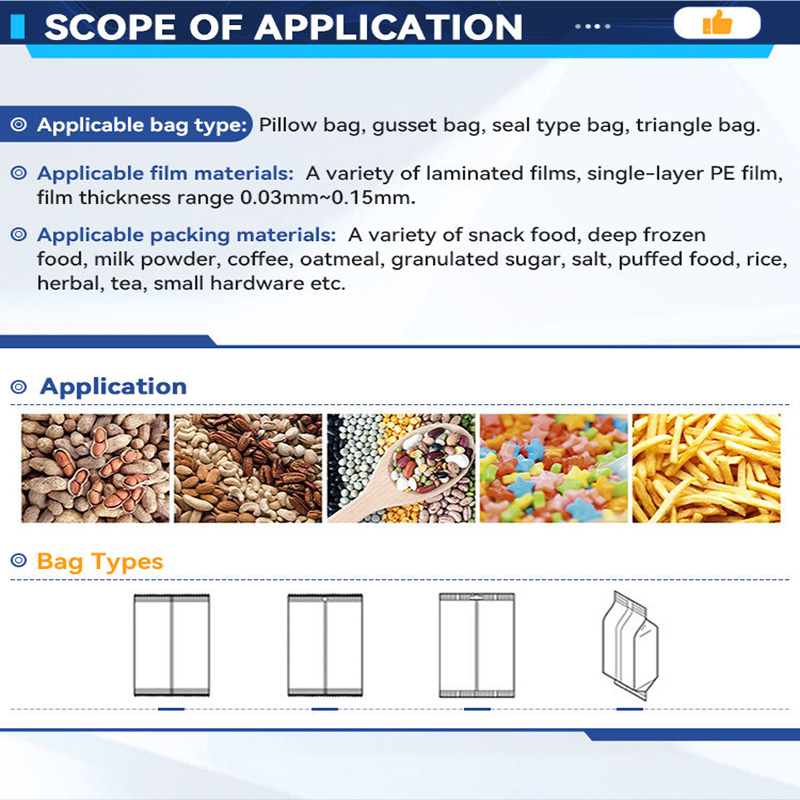

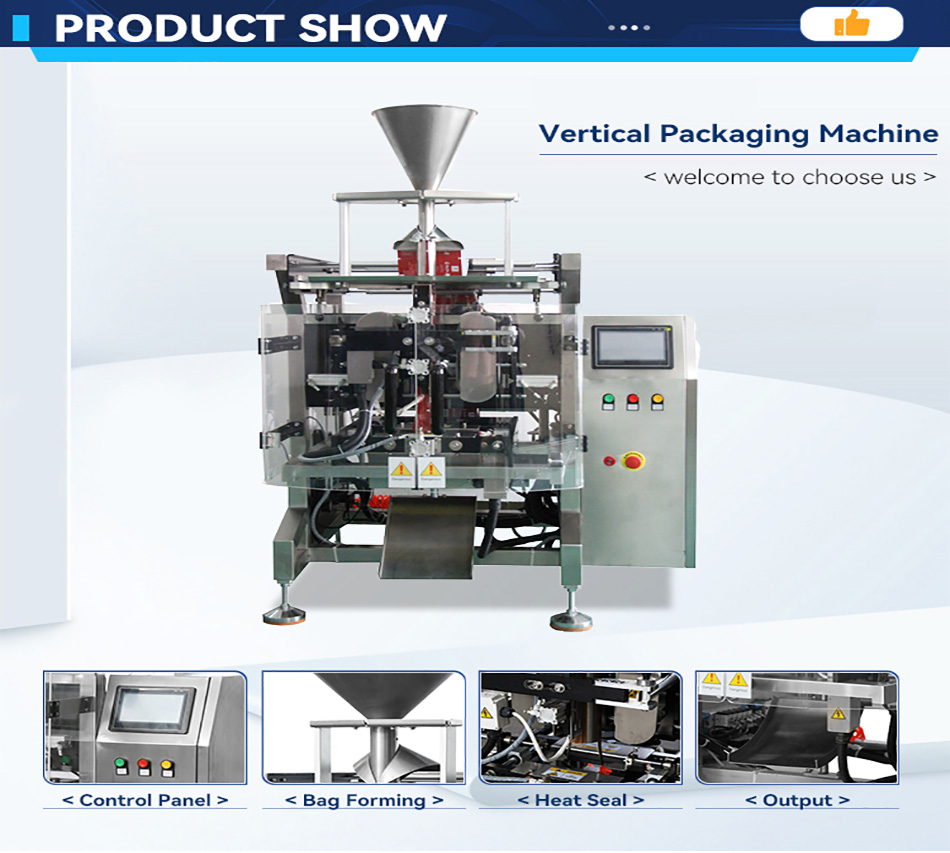

Ultra-high-speed vertical roll film bagging packaging machine application
◎ Applicable bag types: pillow bags, gusset bags, sealed bags, triangle bags.
◎ Applicable film materials: various laminated films, single-layer PE films, film thickness range 0.03mm ~ 0.15mm.
◎ Applicable packaging materials: various snack foods, quick-frozen foods, milk powder, coffee, oatmeal, sugar, salt, puffed foods, rice, herbs, tea, small hardware, etc.

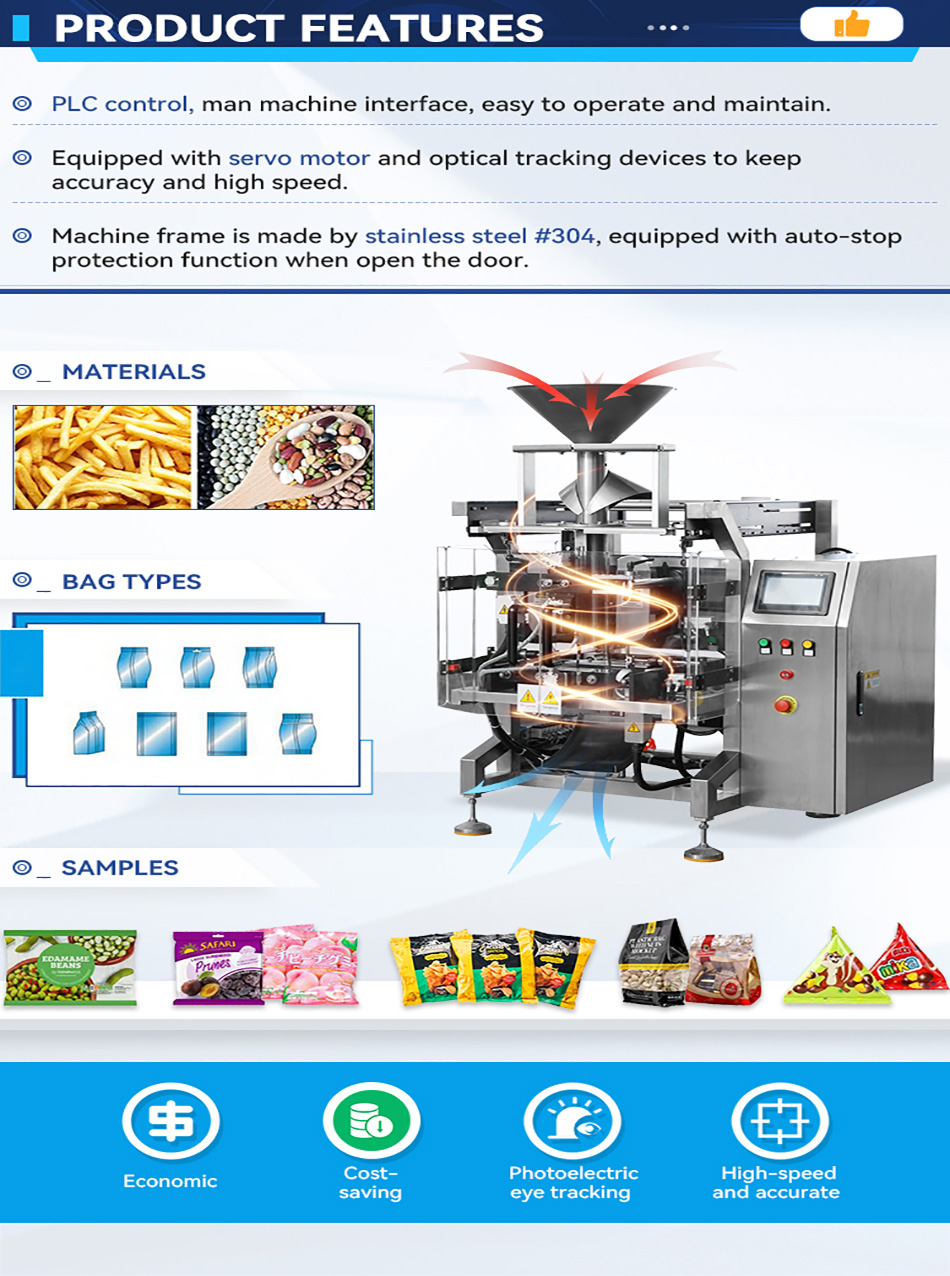

Ultra-high-speed vertical roll film bagging packaging machine features

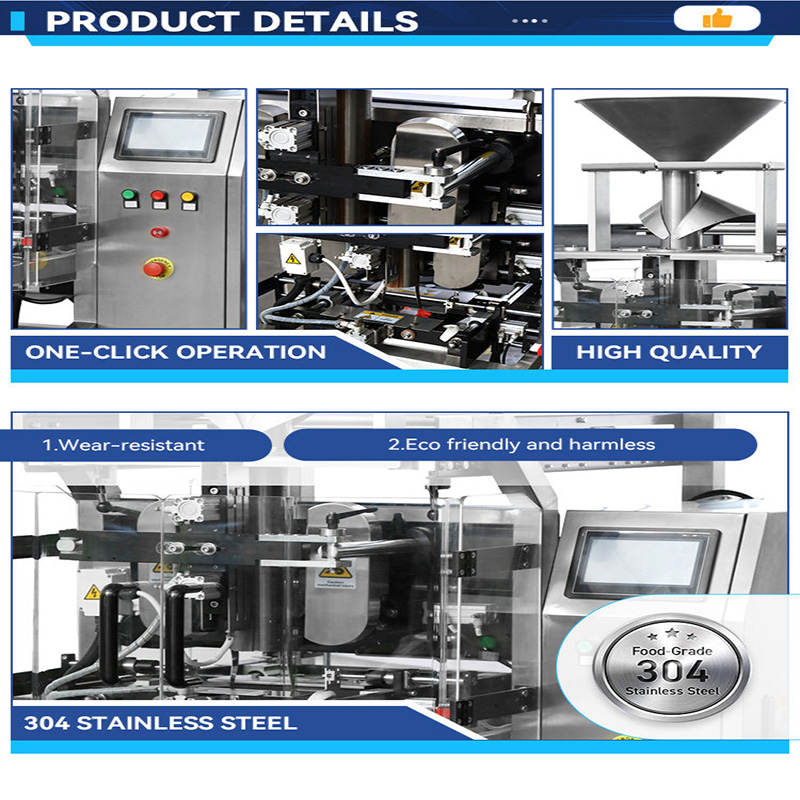

◎ PLC control, human-machine interface, easy to operate and maintain.

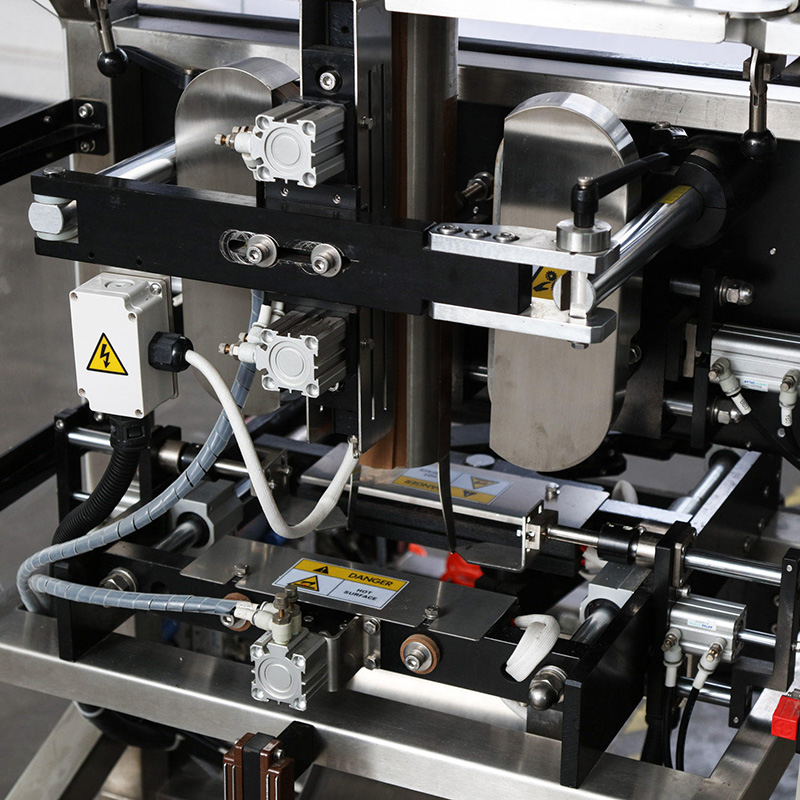

◎ Equipped with servo motor and optical tracking device to maintain accuracy and high speed.
◎ 304 stainless steel frame. Automatic multi-head weighing and vertical packaging combined in one unit.
| Weigher Heads | 10 heads |
| Max Single Dump Cap (g) | 1000g |
| Weighing Accuracy | X(0.5) |
| Max. Weighing Speed | 65WPM |
| Volume | 1.6L/2.5L |
| Film Width | 460mm |
| Max. Packing Speed | 60bag/min |
| Power Requirement | 3.7KW/220V/50(60)Hz |
| Gas Consumption | 0.8MPa |
| Gas Pressure | 0.6m³/min |
| Machine Size | L*W*H=1800mm*1270mm*2230mm（1.6L） L*W*H=1800mm*1270mm*2550mm（2.5L） |
| Machine Weight | 705Kg(1.6L) 740kg（2.5L) |
| Bag Size | L*W=(40-300)MM*(60-220)MM |
Related Products

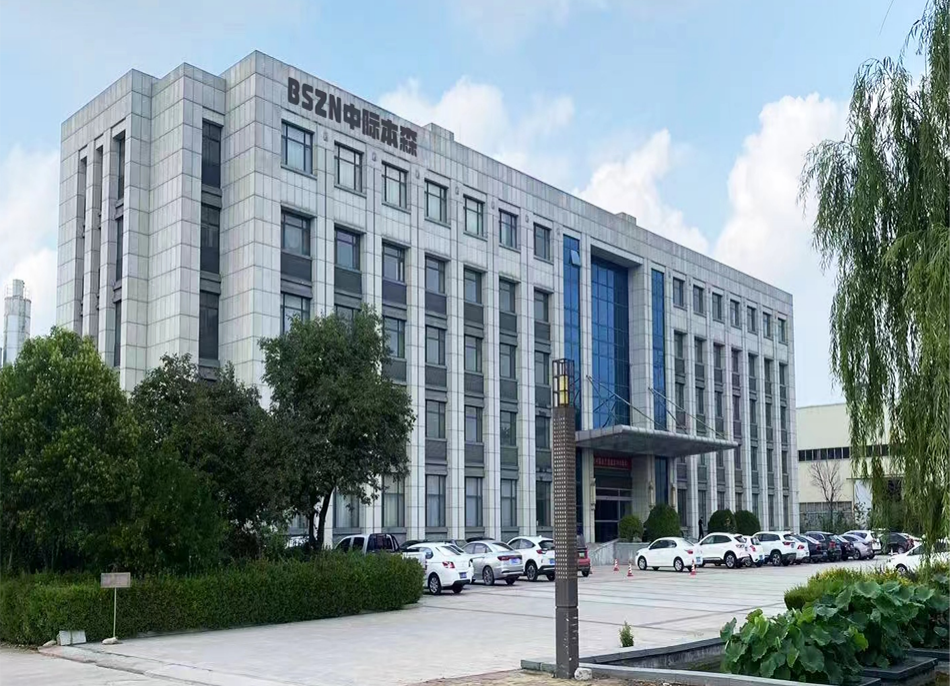

Company Introduction
BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.
Company Qualifications
Exhibition
PACKAGING & DELIVERY
FAQ
Q1: May I know how long it takes to get the machine after transfer?
A1: Usually, if the machine you need is a standard type, we can ship it within 7 days. Customized types are welcome, and the delivery time is about 20-25 working days. Q2: How long is the product warranty period?
A2: The product warranty period is 12 months. Q3: Can you help me pack other goods together into the container?
A3: Yes, of course. If most of the products are purchased from us, and other products are also purchased from other suppliers, you can ask other suppliers to send the products to our factory (Tai’an City, Shandong Province). We help you pack all your products into one container. Arrange everything. Q4: After the machine is finished, how to check the quality of the machine?
A4: We have made video calls with customers in seminars for on-site inspection on zoom, Microsoft, Teamviewer, whatspp, skype and wechat.
