Description :

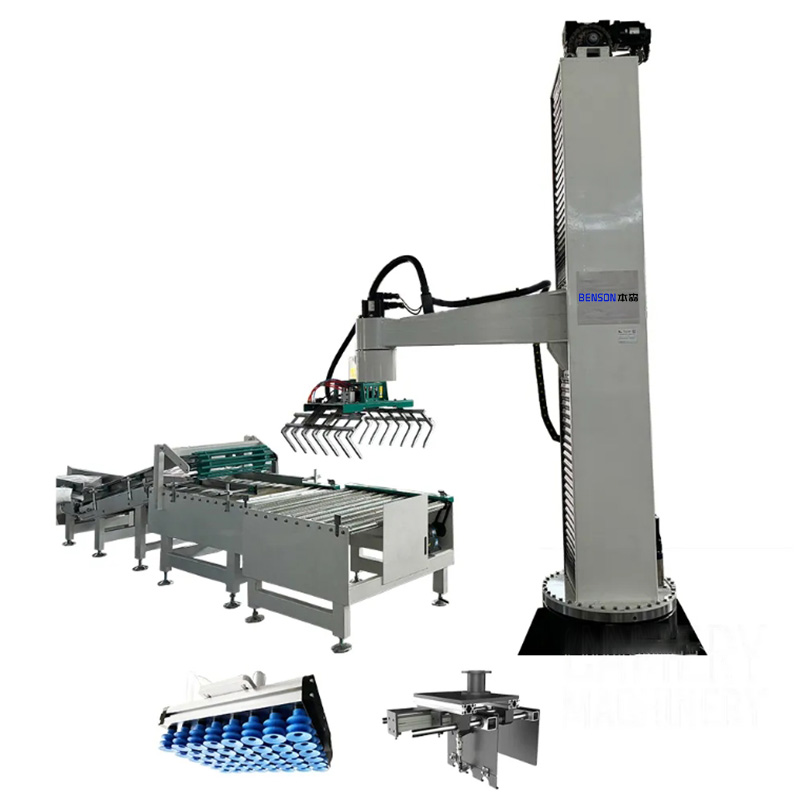

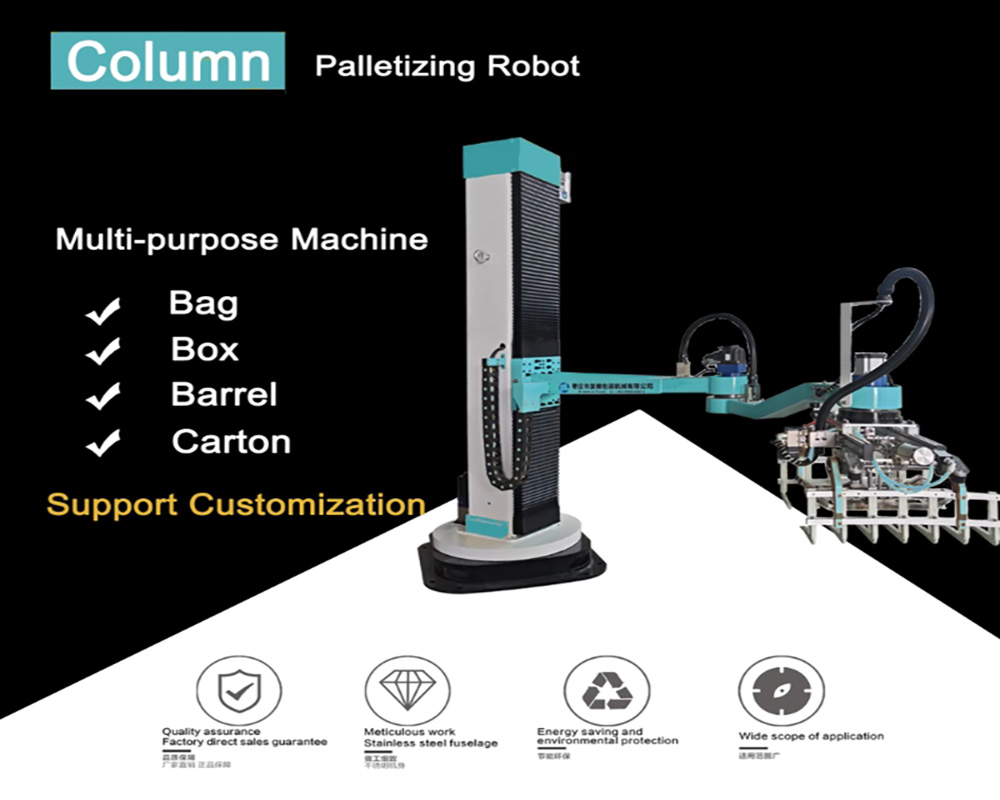

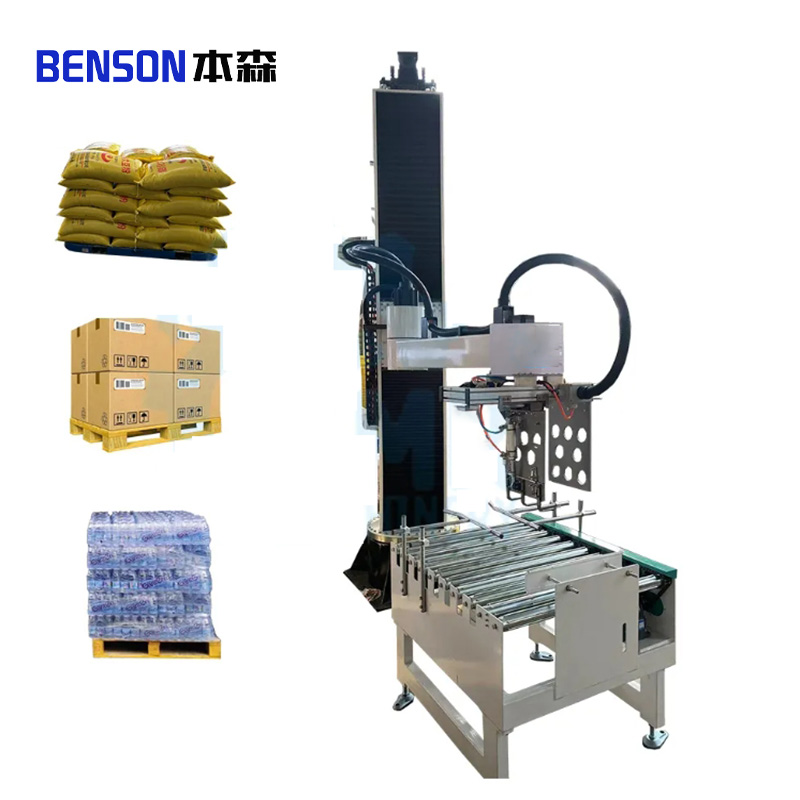

This 20-kilogram fertilizer vertical palletizer is specifically designed for fertilizer production enterprises and is a core device for improving warehousing and logistics efficiency. It adopts an advanced automated control system, which can accurately grasp each 20-kilogram bag of fertilizer and quickly and orderly complete the palletizing operation in a vertical stacking manner. The equipment operates stably and reliably, minimizing the occurrence of damage and deformation of fertilizer bags during handling, and at the same time optimizing the utilization rate of warehousing space. Through flexible program settings, it can easily adapt to different specifications of pallets and stacking requirements, greatly reducing labor costs, effectively reducing labor intensity, significantly improving the automation level and production efficiency of the fertilizer production and packaging process, and bringing an efficient and intelligent modern production experience to enterprises.

Work flow :

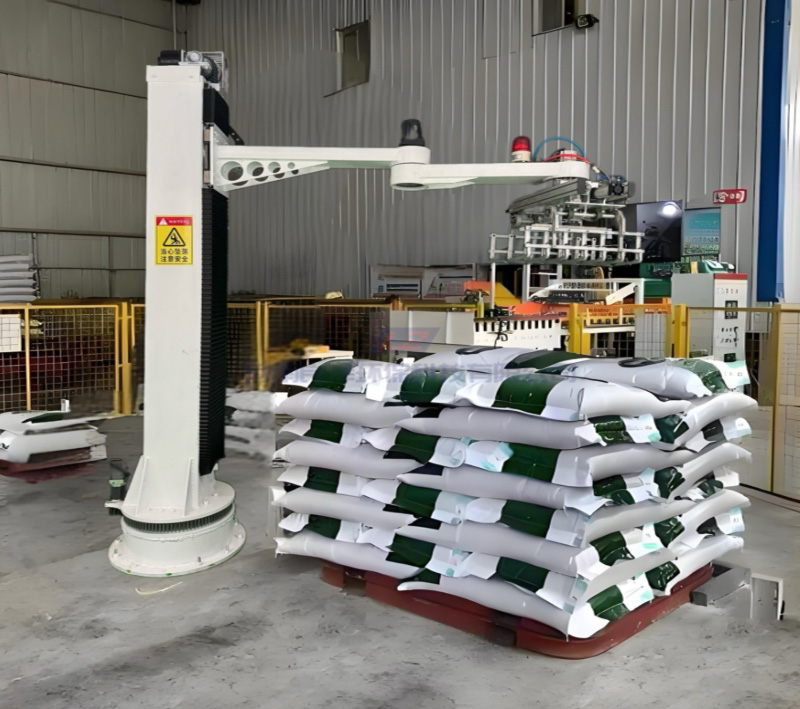

When the robot palletizer in the 25 - kilogram compound fertilizer bagging factory is working, first, the conveyor line continuously transports the packaged 25 - kilogram compound fertilizer bags to the designated position. After the photoelectric sensor accurately detects that the bags are in place, it transmits the signal to the control system. Then, according to the preset program, the robot quickly and stably grabs the compound fertilizer bags through the end - effector (such as a vacuum suction cup or a mechanical gripper). Subsequently, the robot moves the compound fertilizer bags above the pallet along the planned path and accurately places them in the corresponding positions on the pallet according to the set stacking patterns (such as staggered stacking, row - column stacking, etc.). When one layer is stacked, the pallet automatically descends a certain height to make room for the next layer of stacking. This process repeats until the entire palletizing operation of the pallet is completed. Finally, a forklift transports the fully - stacked compound fertilizer pallet away, starting a new round of the palletizing process, efficiently achieving the automated palletizing of compound fertilizer bags and greatly improving production efficiency.

Gross Weight	1000 kg
Packing Capacity	300-400 bags/h
Weighing Range	15-50 Kg / bag or customized needs
Weighing Range	1-5, 5-25, 25-50 Kg/bag, customized needs
Stacking type	5/6/7/8/9/10 bags per layer or customized 1,9layer/50packages:6bags/layer*8layer+2bags*1layer=50bags 2,9layer/54packages:6bags/layer*9layer=54bags 3,10layer/50packages:5bags/layer*10layer=50bags
Voltage	AC220V/AC380V/50HZ or customized needs
Air pressure	0.8 MPa

Advantage:

1). New controller with high precision, working stable, can display the total weight, number of package, easy operation.

2). The adaptive software, having the function of automatic control parameters setting, automatic drop revising, over-weight warning and auto-diagnosis.
3). Wide packing range, high precision, it can match well with conveyor and sewing machine.

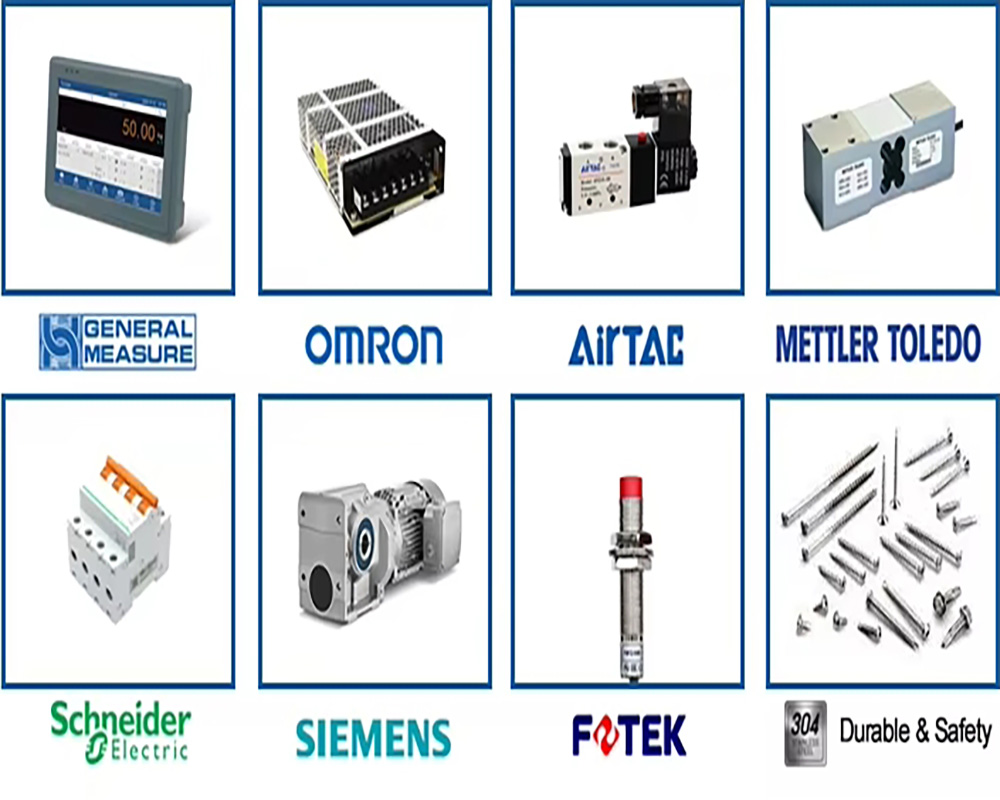

4). Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.
5). The main material body is carbon steel, with painted plastic. And material contact part is stainless iron, corrosion resistance, long service life.

6). communication interface can be offered if need, realization of data communication with PC.

COMPANY PROFILE

BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.

Company Qualifications

Exhibition

Customer site

PACKAGING & DELIVERY

Customer feedback

FAQ

Title goes here.

Q1: May I know how long it takes to get the machine after transfer?

A1: Usually, if the machine you need is a standard type, we can ship it within 7 days. Customized types are welcome, and the delivery time is about 20-25 working days. Q2: How long is the product warranty period?

A2: The product warranty period is 12 months. Q3: Can you help me pack other goods together into the container?

A3: Yes, of course. If most of the products are purchased from us, and other products are also purchased from other suppliers, you can ask other suppliers to send the products to our factory (Tai’an City, Shandong Province). We help you pack all your products into one container. Arrange everything. Q4: After the machine is finished, how to check the quality of the machine?
A4: We have made video calls with customers in seminars for on-site inspection on zoom, Microsoft, Teamviewer, whatspp, skype and wechat.
