SPECIFICATION

Description :

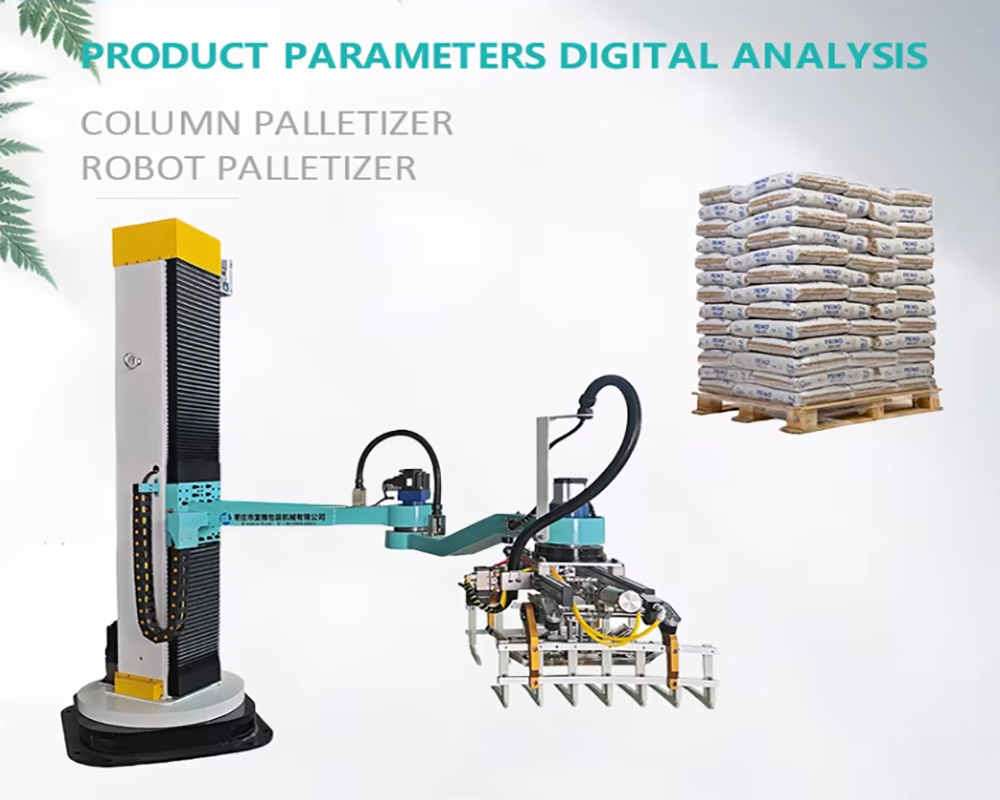

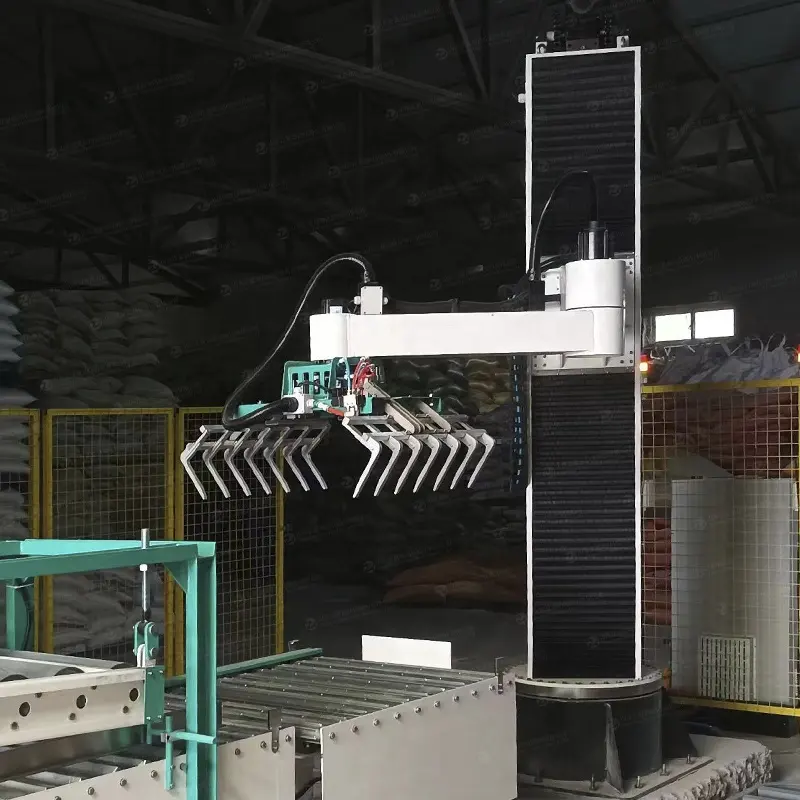

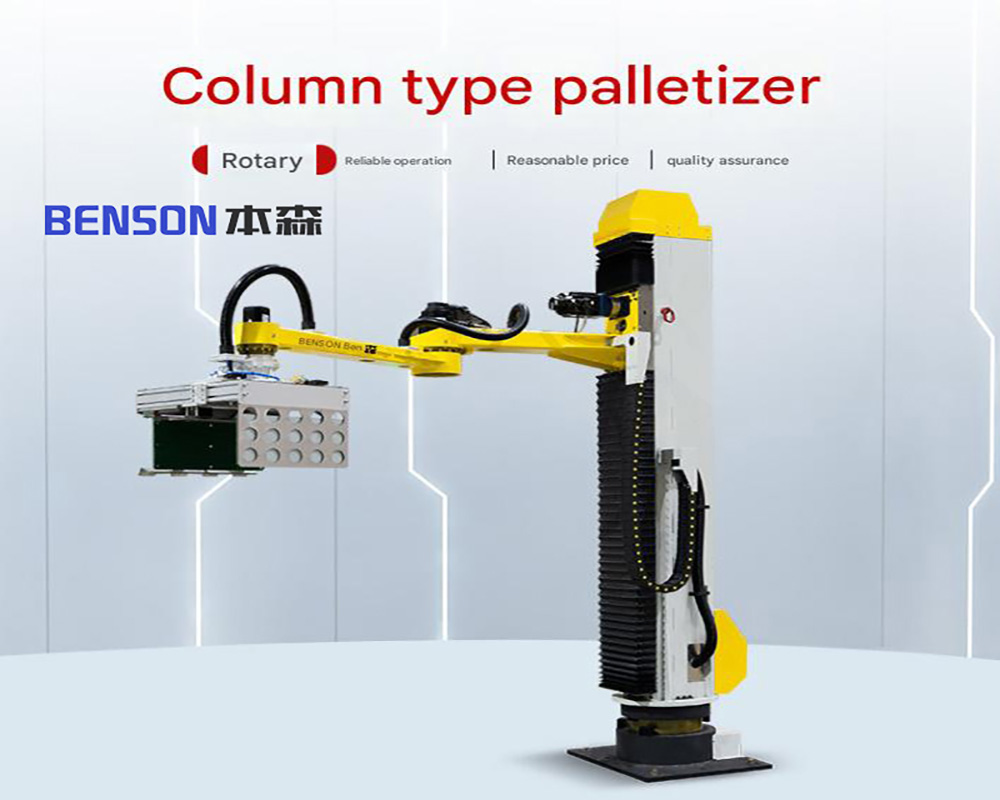

The 15kg canned food column palletizing robotis an automated device specifically designed for the canned food industry. It adopts a six-axis robotic arm structure and is equipped with a high-resolution visual recognition system and a precise servo drive device. Its streamlined body design not only effectively prevents collision damage to the canned food during the grasping process but also ensures the structural stability under high-speed operation through lightweight and high-strength alloy materials. This robot accurately locates the 15kg canned food on the conveyor line through a visual sensor. In combination with the vacuum adsorption and adaptive gripper system, it can complete the grasping of canned food within an error range of ±2mm. During the palletizing process, relying on the built-in intelligent algorithm, it can flexibly plan the column palletizing path according to the pallet size and stacking layers. The maximum palletizing efficiency can reach 800 - 1000 cases per hour. At the same time, its equipped anti-collision safety light curtain and emergency braking system can ensure the safety of human-machine collaborative operations in a complex production environment. The 15kg canned food column palletizing robot is widely applicable to the end of various canned food production lines. It greatly improves the utilization rate of warehouse space and the level of production automation, effectively reduces the labor intensity of workers and operating costs, and is an ideal choice for the intelligent upgrading of modern food manufacturing industry.

The 15kg canned food column palletizing robotWork flow :

1. Canned Goods Conveyance: The 15kg canned goods packaged on the production line are evenly conveyed to the robot working area via the conveyor belt. 2. Visual Recognition: The high - resolution visual sensors carried by the robot quickly scan the position and posture of the canned goods, accurately positioning the grasping points. 3. Grasping and Handling: The vacuum suction or adaptive gripper is activated to grasp the canned goods within an error range of ±2mm. The six - axis robotic arm operates flexibly to transport the canned goods above the designated pallet. 4. Palletizing Formation: Based on the built - in intelligent algorithm, the robotic arm stacks the canned goods layer by layer neatly according to the preset column - type palletizing path until the entire palletizing task of the pallet is completed.

COMPANY PROFILE

BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.

Company Qualifications

Exhibition

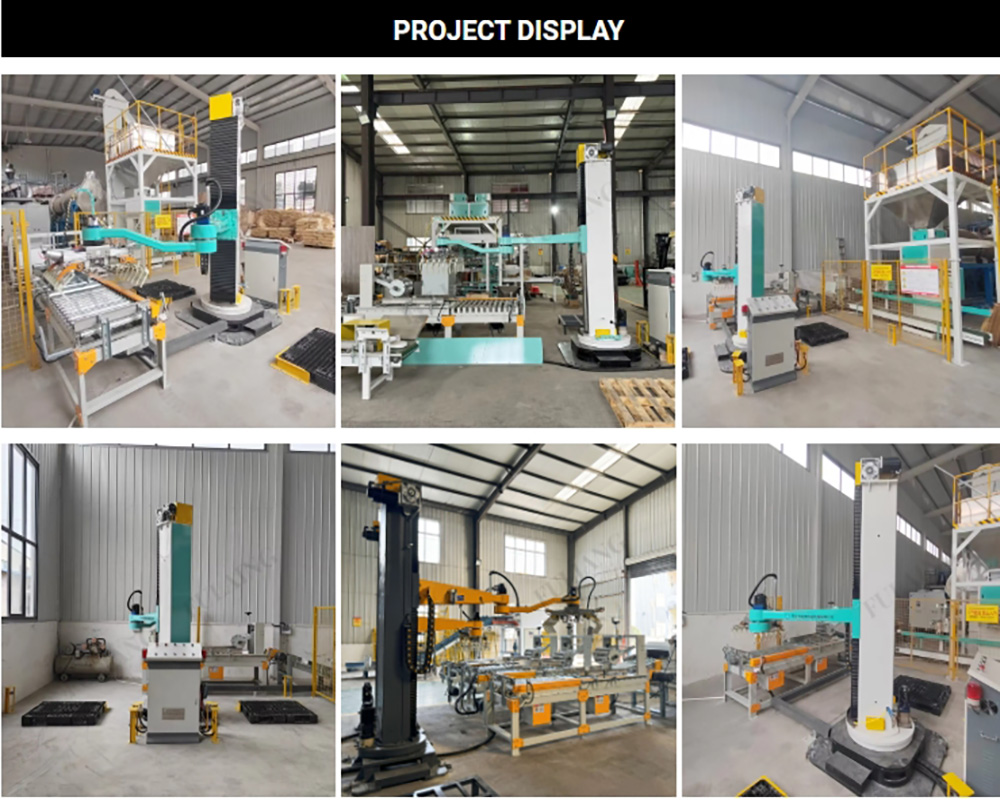

Customer site

PACKAGING & DELIVERY

Customer feedback

FAQ

Title goes here.

Q1: May I know how long it takes to get the machine after transfer?

A1: Usually, if the machine you need is a standard type, we can ship it within 7 days. Customized types are welcome, and the delivery time is about 20-25 working days. Q2: How long is the product warranty period?

A2: The product warranty period is 12 months. Q3: Can you help me pack other goods together into the container?

A3: Yes, of course. If most of the products are purchased from us, and other products are also purchased from other suppliers, you can ask other suppliers to send the products to our factory (Tai’an City, Shandong Province). We help you pack all your products into one container. Arrange everything. Q4: After the machine is finished, how to check the quality of the machine?
A4: We have made video calls with customers in seminars for on-site inspection on zoom, Microsoft, Teamviewer, whatspp, skype and wechat.
