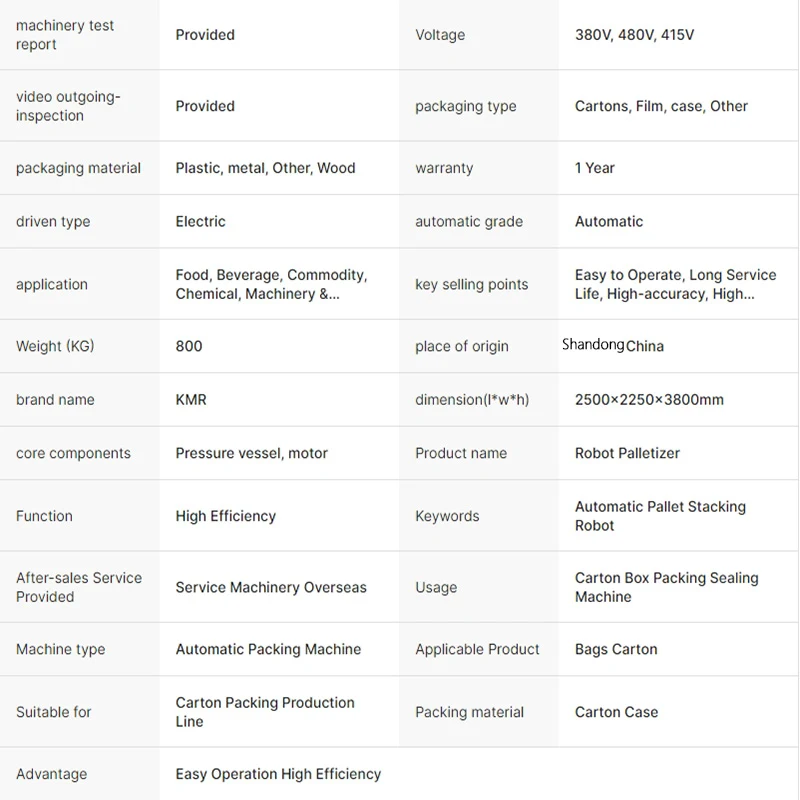

Key attributes

Packaging and delivery

Lead time

Product descriptions from the supplier

Products Description

 Automatic palletizer

 Theautomatic palletizeris a core device for achieving efficient stacking of goods in the field of industrial automation. It integrates mechanical engineering, intelligent control, and sensing technologies, and can replace manual labor to complete repetitive and high-intensity palletizing operations. It issues instructions through control systems such as PLC and industrial computers, and cooperates with servo motors and pneumatic components to drive the movement of robotic arms or columnar structures. It is equipped with diversified gripping devices such as vacuum suction cups and grippers to accurately grasp goods such as cartons, plastic boxes, and bagged materials on the production line, and neatly stack them on pallets according to preset rules (such as row-column type, staggered type).

The working process of the automatic palletizer  ：

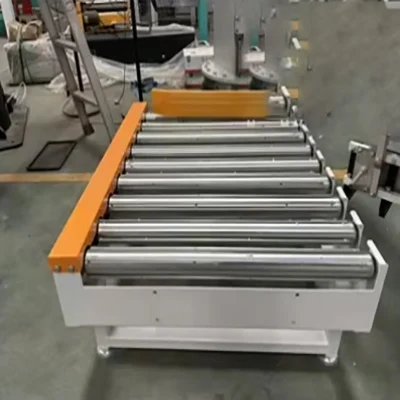

1. Goods Conveyance: Packaged goods on the production line, such as cartons, plastic boxes, bagged products, etc., are conveyed to the working area of the automatic palletizer through a conveyor belt.
2. Goods Detection and Positioning: When the goods reach the designated position, sensors (such as photoelectric sensors, laser sensors, etc.) and vision systems installed on the palletizer start to work. The sensors detect information such as the position, size, shape, and attitude of the goods,
3. Grasping Goods: According to the information provided by the detection and positioning systems, the grasping device (such as vacuum suction cups, grippers, etc.) of the palletizer moves above the goods and accurately grasps the goods.
4. Handling and Palletizing:automatic palletizer After the grasping device grabs the goods, the robotic arm or other moving mechanisms of the palletizer move the goods to the designated position above the pallet according to the preset program and path. Then, according to the set palletizing patterns (such as in - line, staggered, etc.), the goods are accurately placed on the pallet.
5. Pallet Replacement: When the number of layers and quantity of goods stacked on a pallet reach the preset values, the pallet conveying system will move the full - loaded pallet out of the palletizing area and simultaneously send in a new empty pallet for continuous palletizing operations.
6. Palletizing Completion and Output: When all the goods to be palletized are stacked, the palletizer conveys the last full - loaded pallet to the designated position for subsequent handling and storage.

7. System Monitoring and Adjustment:automatic palletizerDuring the entire palletizing process, the control system of the palletizer will monitor the operating status and various parameters of the equipment in real - time, such as the position, speed, and grasping force of the robotic arm.

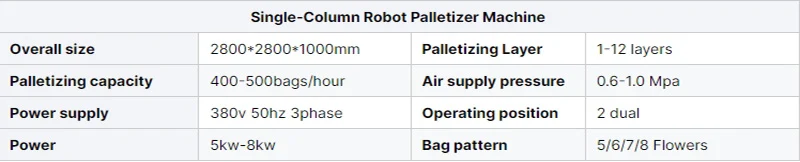

Specification

Features of Automatic Palletizer：

1. High - efficiency automation: It can continuously and quickly complete the palletizing operation of materials, greatly improving the palletizing efficiency, reducing the labor intensity of workers, and enhancing the automation level of production operations.
2. High accuracy: automatic palletizerIt can perform precise palletizing operations according to preset programs and parameters, ensuring the consistency and stability of each stack pattern, and reducing the errors and deviations that may occur in manual palletizing.
3. Strong flexibility: Different palletizing modes and parameters can be set through programming to meet the palletizing requirements of various types, sizes, and weights of products. It can quickly switch between different stack patterns and production tasks.
4. Space - saving: With a compact structural design, it occupies a small area. It can be flexibly arranged according to the actual situation of the production site, effectively utilizing space and improving the utilization rate of the production site.
5. Good safety: It is equipped with a variety of safety protection devices, such as light curtain sensors, safety fences, emergency stop buttons, etc., which can prevent operators from having accidents and ensure the safety and reliability of the production process.

6. Cost - reduction:automatic palletizerIt reduces the amount of labor used, lowering labor costs and management costs. At the same time, it improves production efficiency and product quality, reducing the overall production costs of enterprises and increasing economic benefits.

7. Stable operation: It uses high - quality components and an advanced control system, having high reliability and stability. It can operate continuously for a long time, reducing equipment failures and downtime, and ensuring the continuity of production.

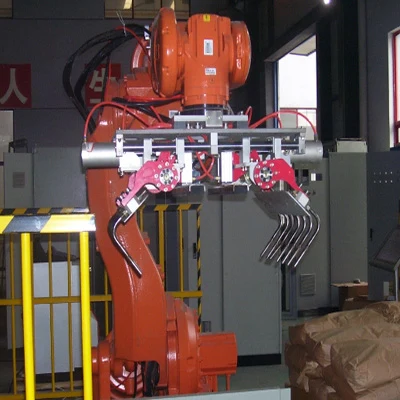

The palletizer features an interchangeable gripper—clamp, suction, or fork—suitable for various materials and shapes. This ensuressecure, damage-free handling and precise placement, enhancing flexibility and efficiency across different product lines and packaging types.

The control cabinet contains all electrical and control components, including PLCs, motor drives, and safety relays. It ensures reliable, safe operation with easy access for maintenance and built-in protection against electrical faults.

The palletizer includes an intuitive teach pendant for easy programming and control. Operators can quickly set pallet patterns, adjust positions, and monitor status, enabling efficient operation and fast changeovers without technical complexity.

Handles material transfer and placement with precision; easily integrates into existing packaging systems for streamlined
operations.

Advantages of automatic palletizers：

• High traceability: The operation of the automatic palletizer is controlled by a program, and all operation data and parameters can be recorded. This enables enterprises to easily query and trace the palletizing information of products, such as palletizing time, stack pattern, operator, etc., which helps to achieve informatized management and quality control of the production process.
• Improve the working environment: In some harsh production environments, such as high temperature, dust, humidity, etc., manual palletizing may pose a threat to the health of workers. The automatic palletizer can work stably in these environments, preventing workers from being exposed to harmful environments and improving working conditions.
• Easy to integrate: automatic palletizerThe automatic palletizer can be easily integrated with other production equipment, such as production lines, conveyors, packaging machines, etc., to form a complete automated production system. This integrated production mode can further improve production efficiency, reduce manual intervention in intermediate links, and enhance the overall coordination and smoothness of production.

• Enhance the corporate image:automatic palletizerThe adoption of advanced automated equipment such as automatic palletizers demonstrates the modern production level and technological strength of the enterprise, helping to enhance the enterprise's image and competitiveness within the industry, and strengthening customers' trust and recognition of the enterprise

Company Profile

Benson Intelligent Equipment (Shandong) Co., Ltd. was founded in 2013, including self-researching and development, design, production and sales. Benson machinery is committed to the design, production and sales of automatic packaging machine, intelligent palletizing machine, wrapping machine etc.

Our products are widely used in food, chemical industry, building materials, feed, warehousing and other industries.Camery has 10 senior technical engineers, more than 20 production workers and 10 senior sales,exporting countries including United States,Mexico, Australia, Russia. Saudi Arabia, Singapore, South Africa etc., all over the world, provided professional solution with efficient and intelligent products to each customer, got the high recognization and compliment from every serviced domestic and foreign client.

Benson machinery advocates innovation, professional, efficient, pragmatic business philosophy, to achieve mutual benefit and win-win, continue to provide our customers with high-end products and quality service.
