Products Description

Bag palletizer

Thebag palletizeris a key equipment for achieving automated material handling in modern industrial production and is widely used in industries such as food, chemical, and building materials. It integrates multiple functional modules such as conveying, gripping, palletizing, and pallet supply. Through the coordinated operation of the PLC control system and sensors, it can accurately grip bagged materials (such as flour, chemical fertilizers, cement, etc.) and stack them layer by layer onto the pallet according to the preset stacking patterns (such as row type, staggered type, etc.). With its high - efficiency operation capacity of hundreds of bags per hour, this equipment not only significantly improves production efficiency but also greatly reduces labor costs. bag palletizerat the same time, it avoids the problem of irregular palletizing caused by human fatigue, ensures the safety of material storage and transportation, and can flexibly adapt to the palletizing needs of bagged products of different specifications, effectively meeting the diverse production scenarios of enterprises.

The working process of the bag palletizer:

1. Material Conveying: The materials to be palletized are conveyed to the working area of the column palletizer through conveyor belts or other conveying devices. During the conveying process, there may be some positioning or alignment devices to ensure that the materials enter the palletizing area in the correct posture and position. 2. Grasping Preparation: When the materials reach the designated position, the control system will send a signal to drive the grasping device of the column palletizer to move above the materials. bag palletizerThe grasping device usually adjusts according to factors such as the shape, size, and weight of the materials to prepare for grasping the materials. 3. Material Grasping: The grasping device descends and firmly holds the materials through various grasping methods (such as clamping, vacuum suction, magnetic attraction, etc.). During the grasping process, sensors will detect whether the grasping is successful to ensure that the materials are stably grasped. 4. Palletizing Operation:bag palletizerThe grasping device rises with the materials, and then moves along the columns and beams to the designated palletizing position according to the preset palletizing patterns (such as row and column arrangement, staggered arrangement, etc.). After reaching the position, the grasping device accurately places the materials on the pallet or stacking position. 5. Repeated Operation: After completing the placement of one material, the grasping device returns to the starting position, prepares to grasp the next material, and repeats the above steps until the palletizing of one layer of materials is completed. 6. Pallet Replacement and Stack Pattern Adjustment: After the palletizing of one layer is completed, the conveying system will move the pallet a certain distance to prepare for the palletizing of the next layer. If it is necessary to change the stack pattern or palletizing height, the control system will accordingly adjust the movement trajectory and placement position of the grasping device. 7. Stack Body Handling: After the entire stack body is palletized, the conveying system will convey the full pallet to the designated storage area or transportation equipment for subsequent storage or transportation.

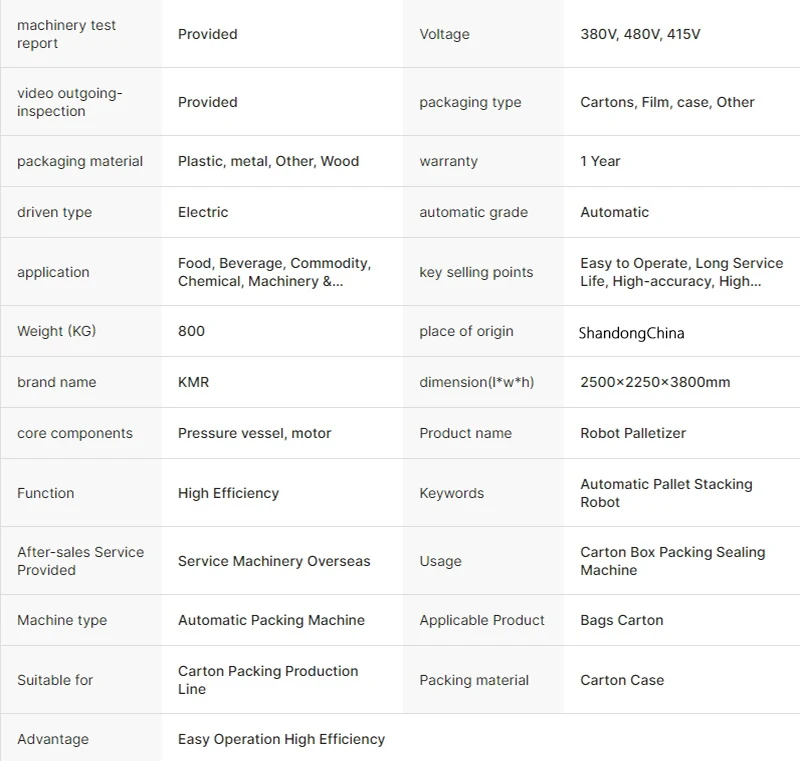

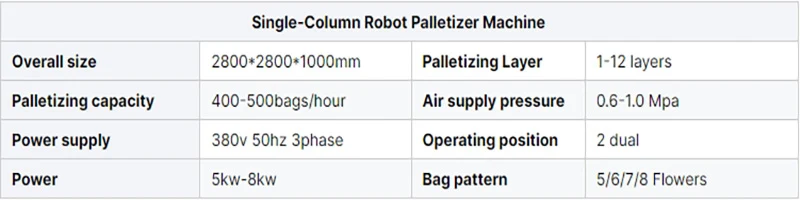

Specification

Main features of the bag palletizer:

1. High - efficiency automation: It can automatically complete the processes of grabbing, transporting, and palletizing bagged materials. This greatly improves the palletizing efficiency, reduces the labor intensity of workers, can operate continuously, and effectively increases the production rhythm.
2. High accuracy: bag palletizerIt conducts palletizing operations according to preset programs and parameters. It can precisely control the grabbing position, placement angle, and number of palletizing layers, etc., ensuring the neatness and stability of the palletizing and reducing the risk of material damage.
3. Strong flexibility: According to different specifications, weights, and palletizing requirements of bagged materials, by adjusting the program and replacing the corresponding fixtures, it can quickly adapt to various palletizing modes and production needs, with a wide range of applications.
4. Good reliability: bag palletizerIt adopts high - quality components and an advanced control system, having high stability and durability. It can maintain a good working state during long - term operation, reduce the frequency of failures, and lower the maintenance cost.
5. High safety: It is equipped with a variety of safety protection devices, such as light curtain sensors, emergency stop buttons, protective fences, etc., which can effectively prevent operators from being accidentally injured during the operation of the equipment and ensure production safety.
6. Space - saving: With a compact structural design, it occupies a small area. It can be flexibly installed and arranged according to the space layout of the production site, and can well adapt to different workshop environments.

7. Data recording and monitoring: Some bag palletizing machines have the functions of data recording and monitoring. They can record data such as the number of palletized bags, running time, and fault information in real - time, which is convenient for managers to conduct production statistics and equipment management, discover problems in a timely manner, and take corresponding measures.

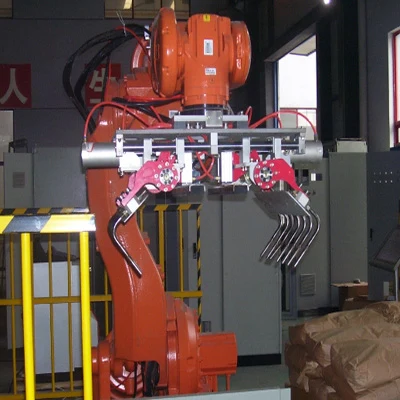

The palletizer features an interchangeable gripper—clamp, suction, or fork—suitable for various materials and shapes. This ensuressecure, damage-free handling and precise placement, enhancing flexibility and efficiency across different product lines and packaging types.

The control cabinet contains all electrical and control components, including PLCs, motor drives, and safety relays. It ensures reliable, safe operation with easy access for maintenance and built-in protection against electrical faults.

The palletizer includes an intuitive teach pendant for easy programming and control. Operators can quickly set pallet patterns, adjust positions, and monitor status, enabling efficient operation and fast changeovers without technical complexity.

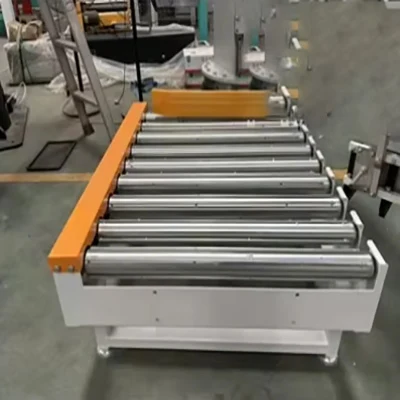

Handles material transfer and placement with precision; easily integrates into existing packaging systems for streamlined
operations.

Advantages of bag palletizing machine

1. Improve production efficiency: It can perform palletizing operations quickly and continuously. Compared with manual palletizing, it greatly increases the palletizing speed, effectively shortens the residence time of products on the production line, accelerates the entire production process, and improves the production efficiency of enterprises.
2. Reduce labor intensity: bag palletizerIt replaces manual labor in heavy palletizing work, liberating workers from repetitive and high - intensity physical labor, reducing manual fatigue and the occurrence of work - related injuries, and improving the working environment.
3. Ensure palletizing quality: By palletizing according to preset programs and parameters, it can ensure that the placement position of each bag of products is accurate and uniform, and the stack shape is stable. This avoids problems such as unevenness and skewness that may occur in manual palletizing, and improves the safety of product storage and transportation.
4. Save labor costs: One bagging palletizer can replace the work of multiple workers, reducing the labor demand of enterprises and lowering the cost of labor wages, benefits, etc. In the long run, it can save a large amount of operating costs for enterprises.
5. Improve space utilization: According to the space dimensions of warehouses or transport vehicles, it can precisely design the palletizing method and stack shape, making the stacking of goods more compact and reasonable, effectively improving the space utilization of warehouses and reducing storage costs.
6. High flexibility: According to different product specifications, packaging forms and palletizing requirements, it can quickly switch the palletizing mode by adjusting the program and parameters, adapting to the palletizing needs of various types of bagged products, and has strong versatility and flexibility.
7. Easy to manage:bag palletizer The automated palletizing process is easy to monitor and manage. It can be integrated with the enterprise's production management system to achieve functions such as remote control, data statistics and analysis of the palletizing operation, facilitating the enterprise's production scheduling and quality control.

8. Enhance corporate image: The adoption of advanced automated equipment demonstrates the modern production level and technological strength of the enterprise, helps to enhance the enterprise's image and competitiveness in the industry, and attracts more customers and partners.
